NAME: Underfloor VAV Fan Powered Terminals Cooling/Heating
MODEL: RS Uderfloor SERIES-UFFP

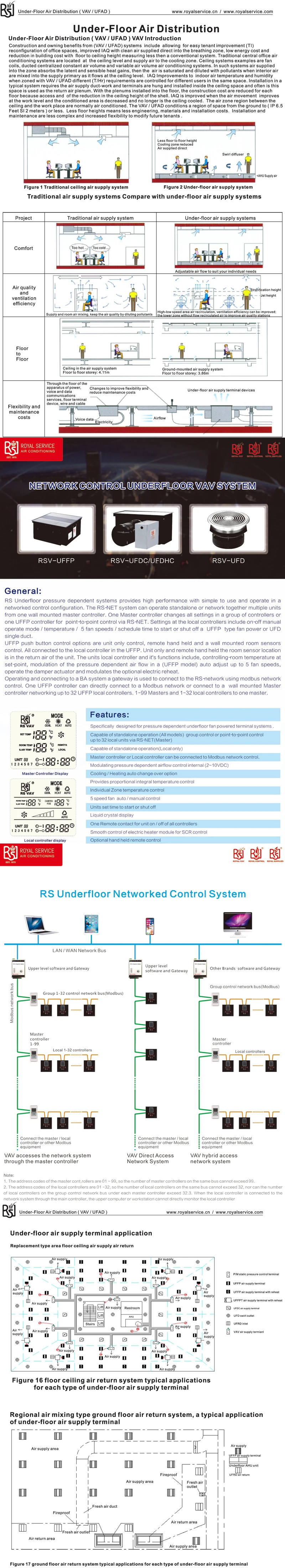

Underfloor Air Distribution Systems (UFAD) are rapidly penetrated the office building arena across the world because they provide a number of advantages, (and a few disadvantages) over conventional office building HVAC systems. This brochure will present current and new design approaches and new solutions that refine and improve the performance and flexibility of (UFAD) systems. Included in this brochure are explanations of maintenance of uniform supply temperatures in the underfloor plenum, introduction of thermal stratification in the occupied spaces, product and design applications of leakage issues in the floor plenum, control of space humidity for humid climates.
The Green Building Council supports underfloor design and applications for improved indoor air quality and reduced energy.
Under-Floor Air Distribution (VAV / UFAD), compared with the ceiling air supply system
Air conditioned at (IP 60 F to 65 F, Sl 16-18 C) supplied directly from a central located floor air handler unit to the under floor and as a plenum air is distributes up throughout floor and diffused in a swirling air mixing distribution action. Channeling supply air under the floor is accomplished with zone units and pressure modulation controlled dampers for variable a distribution. UFAD have excellent zoning of large spaces at different air and temperature conditions with standard underfloor diffusers. Supply air swirl motion mixes and increases the comfort and IAQ levels. Ceiling systems blow air down and can not mix properly low air flow.
Underfloor air supply systems include, but are not limited to the following advantages.
♦ Reduce building construction costs
♦ Reduce direct cost of initial installation and reduce operating costs
♦ Energy saving are direct from less of a heating load to operate UFAD
♦ Excellent airflow patterns
♦ Forgiving tenant improvement system flexibility
♦ LEED points and "Green Design", to create a comfortable environment
Under-floor air supply systems Applications
Under-floor air supply systems applications are suitable for office buildings. with an open floor office lavout each diffusers can allow the socupant po adiust the ais sualy terminal accordina to individual needs, and to meet sinale zones that need independent control and environmental copterminal according to individual needs, and to meet single zones that need independent control and environmental control.
Powered VAV UFFP floor Air Supply Fan
Model UFFP floor air supply fan powered terminal units is designed for constant air flow operation mixing cooler primary air and space return air and then suppling the air back into the space.The primary air mixed with secondary air directly into the occupied zone, the secondary air temperature sensor is the spaces air temperature and controls primary air fiow, located in the secondary return air-flow in the unit before the fan. No wall mounted thermostat is needed. A remote panel communicates with each unit in a network. Simple adjustment by the occupant can set temperature and fan speed independently for each unit for individual zone comfort.
Underfloor panels are designed for (24x24inch 600 x 600 mm) panels. The model UFFP floor air supply fan powered VAV terminal mounted into the panel space on top of a 600 x 600 mm floor metal bracket, flush inish with the floor surface, the gap at the bottom of the unit to the ground floor and no direct contact is required.
UNDERFLOOR VAV • Wide Applications
Applications
♦ UNDERFLOOR APPLICATIONS
♦ RAISED FLOOR AIR DISTRIBUTION SYSTEMS
♦ SUITABLE FOR OFFICE BUILDING, etc..
| PRODUCT INFORMATION & FEATURES | |
| MODEL | Underfloor VAV Fan Powered Terminals |
| TYPE | VAV terminal units box |
| APPLICATION | Individual Zone Temperature Control, Varying Air Volume |
| FEACTURES | ♦ Superior air distribution ♦ Easily adapts to designs ♦ Lower cost per zone ♦ Reliable and durable quality ♦ Easy maintenance ♦ Automatic control capabilities |
| APPLICATION SCENARIOS | HOTEL, villa, APARTMENT, OFFICE BUILDING, HOSPITAL, school, mall, Sports venues, Leisure Facilities, supermarket, WAREHOUSE, WORKSHOP, Park, farmhouse, Courtyard, closed or open offices, libraries, meeting rooms, exhibition halls, shopping markets, rest rooms, banquet halls etc. |
| HOUSING/CASING | 1.2mm quality cold-rolled steel, extruded aluminum linear grilles |
| PANEL SIZE | 24x24inch 600 x 600 mm |
| HEIGHT | Standard Height 280mm; Ultrathin 250mm |
| SHAPE OPTION | Round, Square, Linear |
| WARRANTY | ONE YEARS WARRANTY |
| KEY WORDS | Air handling unit, Air Valve, Air Damper, Air Regulator, Volume Control, Air Distribution, Air Diffuser, Air Terminal Units Box, VAV, Underfloor, Variable Air Flow, Fan Powered |
| OEM & ODM SERVICE | ACCEPTABLE, please send your specific requirements |
Features:Underfloor VAV Fan Powerer Terminals (RSV-UFFP)
♦ Specially designed to meet under floor applications where premium advantage of raised floor air distribution systems are designed.
♦ Harmonized design makes unit simple installation and easy operation, convenient access to all components.
♦ Quiet constant fan operation.
♦ Suitable for different airflow system designs(Pressure independent/Dependent).
♦ Suitable for different control application(Pneumatic/Analog/Digital control).
♦ Designed for different system application(Cooling only/Cooling with reheat/Heating only).
♦ High quality, heavy duty, extruded aluminum linear grilles and low leakage air damper.
♦ Decorating plate and elec. heater are optional.
♦ Modbus Net-work control as possible.
♦ Low Profile design as optional.
♦ Passed the test by Shanghai Tongji construction Quality Inspection.
| PRODUCT INFORMATION & FEACTURES | |
|---|---|
| MODEL | Underfloor VAV Fan Powered Terminals |
| TYPE | VAV terminal units box |
| APPLICATION | Individual Zone Temperature Control, Varying Air Volume |
| FEATURES | ♦ Superior air distribution ♦ Easily adapts to designs ♦ Lower cost per zone ♦ Reliable and durable quality ♦ Easy maintenance ♦ Automatic control capabilities |
| APPLICATION SCENARIOS | HOTEL, villa, APARTMENT, OFFICE BUILDING, HOSPITAL, school, mall, Sports venues, Leisure Facilities, supermarket, WAREHOUSE, WORKSHOP, Park, farmhouse, Courtyard, closed or open offices, libraries, meeting rooms, exhibition halls, shopping markets, rest rooms, banquet halls etc. |
| HOUSING/CASING | 1.2mm quality cold-rolled steel, extruded aluminum linear grilles |
| PANEL SIZE | 24x24inch 600 x 600 mm |
| HEIGHT | Standard Height 280mm; Ultrathin 250mm |
| SHAPE OPTION | Round, Square, Linear |
| WARRANTY | ONE YEARS WARRANTY |
| KEY WORDS | Air handling unit, Air Valve, Air Damper, Air Regulator, Volume Control, Air Distribution, Air Diffuser, Air Terminal Units Box, VAV, Underfloor, Variable Air Flow, Fan Power |
| OEM & ODM SERVICE | ACCEPTABLE, please send your specific requirements |
Underfloor VAV Fan Powerer Terminals (RSV-UFFP)
♦ Specially designed to meet under floor applications where premium advantage of raised floor air distribution systems are designed.
♦ Harmonized design makes unit simple installation and easy operation, convenient access to all components.
♦ Quiet constant fan operation.
♦ Suitable for different airflow system designs(Pressure independent/Dependent).
♦ Suitable for different control application(Pneumatic/Analog/Digital control).
♦ Designed for different system application(Cooling only/Cooling with reheat/Heating only).
♦ High quality, heavy duty, extruded aluminum linear grilles and low leakage air damper.
♦ Decorating plate and elec. heater are optional.
♦ Modbus Net-work control as possible.
Underfloor Air Distribution Systems (UFAD) are rapidly penetrated the office building arena across the world because they provide a number of advantages, (and a few disadvantages) over conventional office building HVAC systems. This brochure will present current and new design approaches and new solutions that refine and improve the performance and flexibility of (UFAD) systems. Included in this brochure are explanations of maintenance of uniform supply temperatures in the underfloor plenum, introduction of thermal stratification in the occupied spaces, product and design applications of leakage issues in the floor plenum, control of space humidity for humid climates.
The Green Building Council supports underfloor design and applications for improved indoor air quality and reduced energy.
Under-Floor Air Distribution (VAV / UFAD), compared with the ceiling air supply system
Air conditioned at (IP 60 F to 65 F, Sl 16-18 C) supplied directly from a central located floor air handler unit to the under floor and as a plenum air is distributes up throughout floor and diffused in a swirling air mixing distribution action. Channeling supply air under the floor is accomplished with zone units and pressure modulation controlled dampers for variable a distribution. UFAD have excellent zoning of large spaces at different air and temperature conditions with standard underfloor diffusers. Supply air swirl motion mixes and increases the comfort and IAQ levels. Ceiling systems blow air down and can not mix properly low air flow.
Underfloor air supply systems include, but are not limited to the following advantages
♦ Reduce building construction costs
♦ Reduce direct cost of initial installation and reduce operating costs
♦ Energy saving are direct from less of a heating load to operate UFAD
♦ Excellent airflow patterns
♦ Forgiving tenant improvement system flexibility
♦ LEED points and "Green Design", to create a comfortable environment
Under-floor air supply systems Applications
Under-floor air supply systems applications are suitable for office buildings. with an open floor office lavout each diffusers can allow the socupant po adiust the ais sualy terminal accordina to individual needs, and to meet sinale zones that need independent control and environmental copterminal according to individual needs, and to meet single zones that need independent control and environmental control.
Powered VAV UFFP floor Air Supply Fan
Model UFFP floor air supply fan powered terminal units is designed for constant air flow operation mixing cooler primary air and space return air and then suppling the air back into the space.The primary air mixed with secondary air directly into the occupied zone, the secondary air temperature sensor is the spaces air temperature and controls primary air fiow, located in the secondary return air-flow in the unit before the fan. No wall mounted thermostat is needed. A remote panel communicates with each unit in a network. Simple adjustment by the occupant can set temperature and fan speed independently for each unit for individual zone comfort.
Underfloor panels are designed for (24x24inch 600 x 600 mm) panels. The model UFFP floor air supply fan powered VAV terminal mounted into the panel space on top of a 600 x 600 mm floor metal bracket, flush inish with the floor surface, the gap at the bottom of the unit to the ground floor and no direct contact is required.
